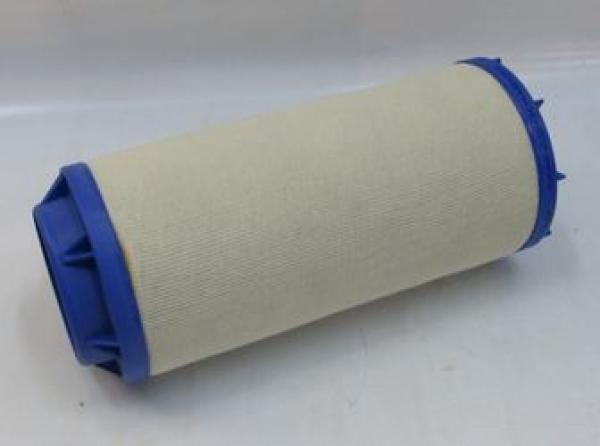

Coalescer Element I-614C5TB
Technical Specifications
• Micron Rating (µm): 0.4
• Length (inch): 14
• Application: Aviation
• Seal Material: Buna-N
• Certificates: Category C, EI1581
• Outer Wrap: N/A
• Filter Construction: Fiberglass
• End Cap Configuration: Threaded Base
• Inside Diameter (inch): 3.5
• Outside Diameter (inch): 6
• Filter Type: Coalescer
• Maximum Operating Temperature: 66-71 °C, 150-160 °F
• Maximum Pressure Differential: 75 psi, 5.2 bar
• Changeout Pressure Differential: 15 psi, 1 bar
• pH Range: Continuous Operation: 5 - 9
• Brand: Velcon
• Flow Rate: Depends on fluid viscosity and application.
• Application: Aviation
